TIC 7000 TIC / TC-S 6000 TIC 3000

Industrial door air curtain

INDIVIDUAL
INNOVATIVE
ENERGY-SAVING



  • Applications

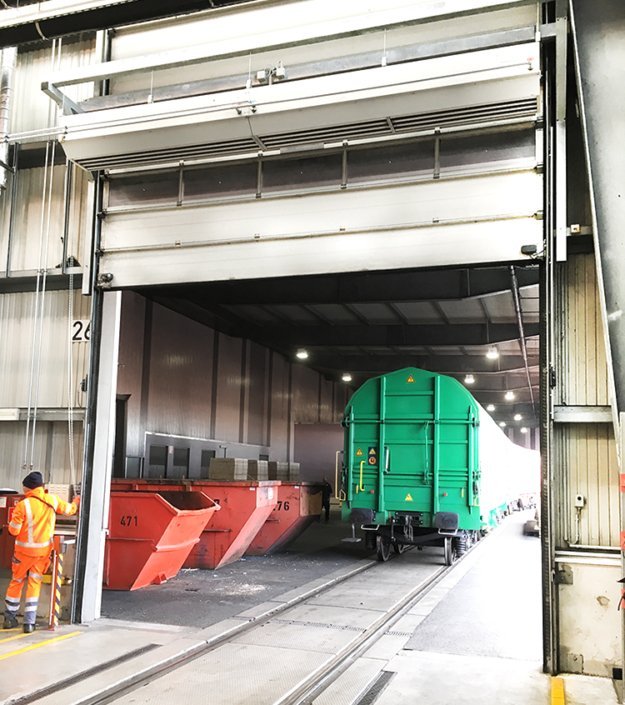

    The TIC series TEKADOOR door air curtain is suitable for shielding larger doors in the industrial, warehousing and logistics sectors. This not only ensures draught-free transport of goods through entry and exit doors for the people working there, but also ideally utilises the area around the door.

  • Special design

    Installation-ready industrial door air curtains either as heated or recirculated air curtains (without heat exchanger), in suspended or floor mounted versions. Both variants can be installed in series. Depending on the door width, the floor mounted vertical unit can be installed next to the door, either on one side or both sides. The appropriate TIC modules can be installed on top of each other, depending on the door height. For the suspended variant, multiple modules can be installed next to each other, depending on the door width. In the higher specification variant, the air exitsTIC 6000 & TIC 7000 via the Coanvara discharge nozzle – a multi-nozzle system with optimised, drop-shaped profiles. Using the Coanda effect to bring the individual streams together results in a very broad, homogenous airstream. The purposely long profiles, which are parallel and steplessly adjustable in both directions (up to 40°), act as a flow straightener. This ensures the stream mixing factor remains low, as desired. The selected discharge temperature is carried far down to the floor, effectively preventing the room from cooling down. This means the discharged air is heated less than with air curtains using a conventional discharge system. For the basic TIC-S design, the air is discharged via a conical discharge box – located centrally – without a discharge grill. For the TIC 3000, the air is discharged through a fully adjustable system of fins.

  • The housing

    Industrial air curtain unit manufactured with a robust, selfsupporting, powder coated sheet steel housing. Available in the colour RAL 7032 (pebble grey) as standard, or powder coated in standard RAL tones depending on the wishes of the client. In contrast, the housings of the TIC 3000, TIC-S 6000 und TIC 7000 are manufactured from galvanised sheet steel. For the floor mounted vertical unit, the floor console and connecting pieces for series installation are included as standard. For the suspended version, fixation/suspension is performed using M10 rivet nuts.

  • Heating media

    Heat exchangers for different heating media
    LPHW: For normal temperature LPHW 70/50 °C or low-temperature LPHW 60/40 °C, other temperatures available on request.
    Recirculating air operation without heating is possible (without heating media).
    TIC 3000 E: 3-stage heat exchanger, spiral-form,
    corrosion resistant, with thermal overheating protection.

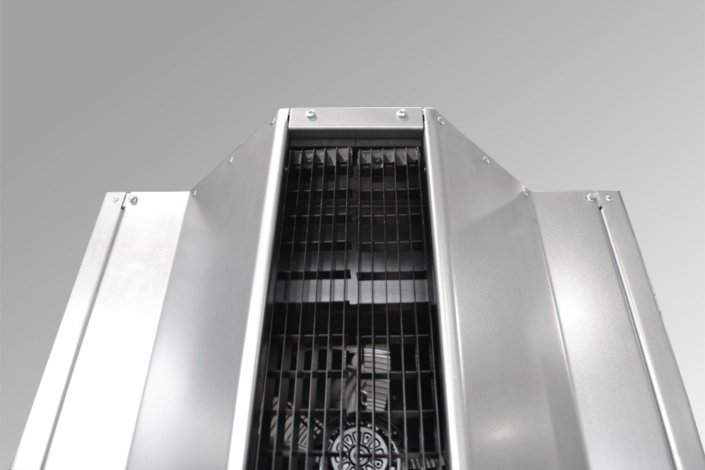

  • The fans

    Axial fans with three-phase motor, IP 54 degree of protection, motor protection via thermal contacts, including protection guard. These fans comply with the EU Directive ErP regarding minimum efficiency requirements for fans within the EU.

  • Mounting

    Easy installation thanks rivet buts (M10) on top of the unit.

  • Maintenance

    In the TIC series, a filter is not necessary thanks to the purposefully large distance between the fins on the electric heater. This enables easy cleaning of the units.

  • Control unit

    TIC 7000 / TIC 6000 / TIC-S 6000 / TIC 3000
    5 stage HATI speed controller. 400 V / 50 Hz according to VDE 0550 in the housing, with step switch, fault and operation lights, restart interlock for full motor protection, manual to automatic switching and contactor for external signal encoder (e.g. door contact).

  • Control unit EC/AC

    TIC 3000

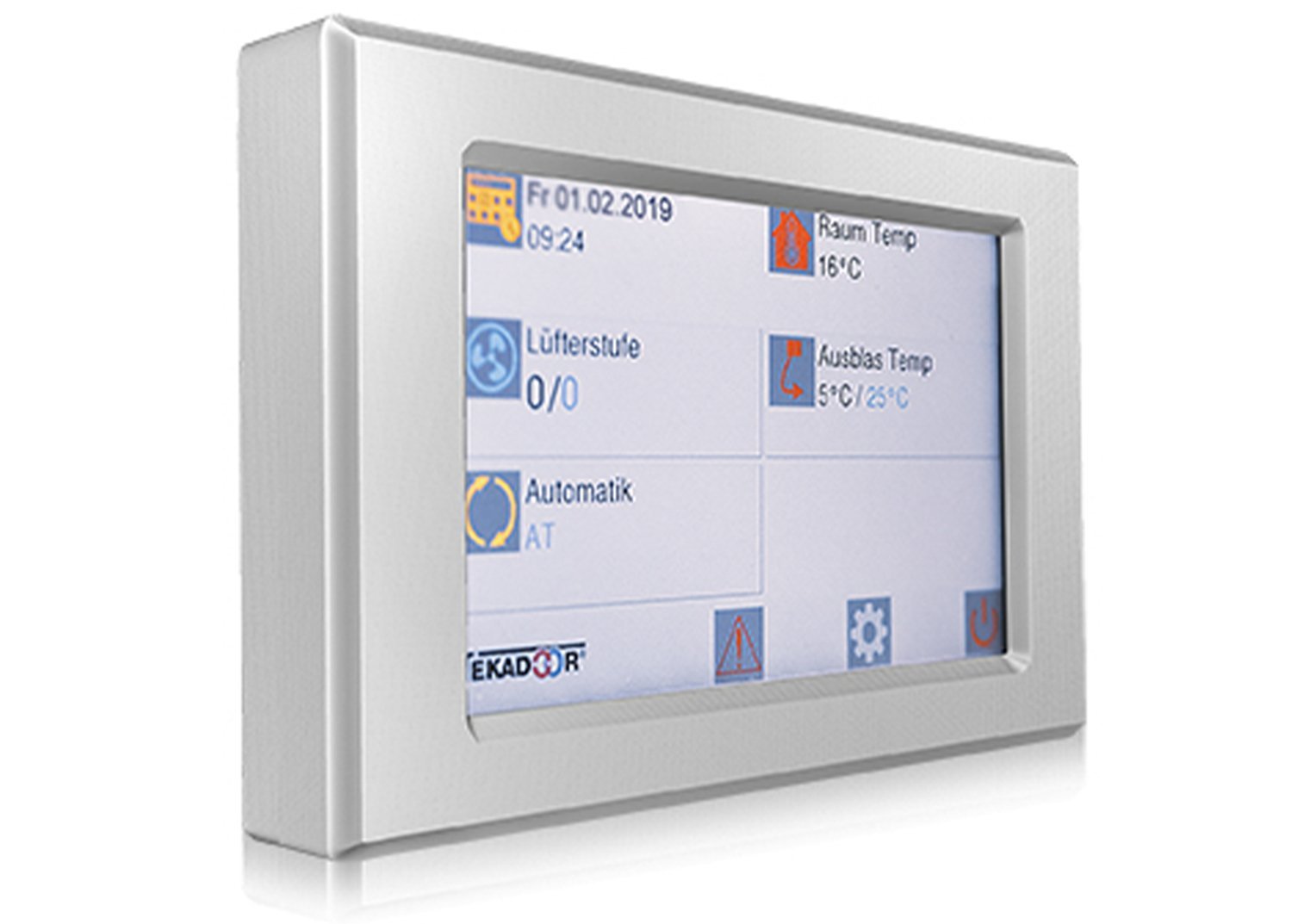

    Electronic TEKADOOR GTC EC control unit, multifunctional with touch display, including an optional ModBus interface
    A GTC 1 EC control unit is used as standard for models with LPHW heating. A GTC E EC control unit is used for models with electrical heating. The control board is preassembled in the air curtain and 20m of preassembled data cable (connection between the door air curtain and control unit) are included.




Advantages at a glance

  • Made in Germany
  • ErP conform
  • Robust, self-supporting sheet steel housing
  • Large throw distance, optimum shielding
  • Simple to install
  • Optional available with EC fans
  • Optional available with electrical heat exchanger (230V fans)
TIC

TIC 7000 TIC / TC-S 6000 TIC 3000

Details



Connections

Connections

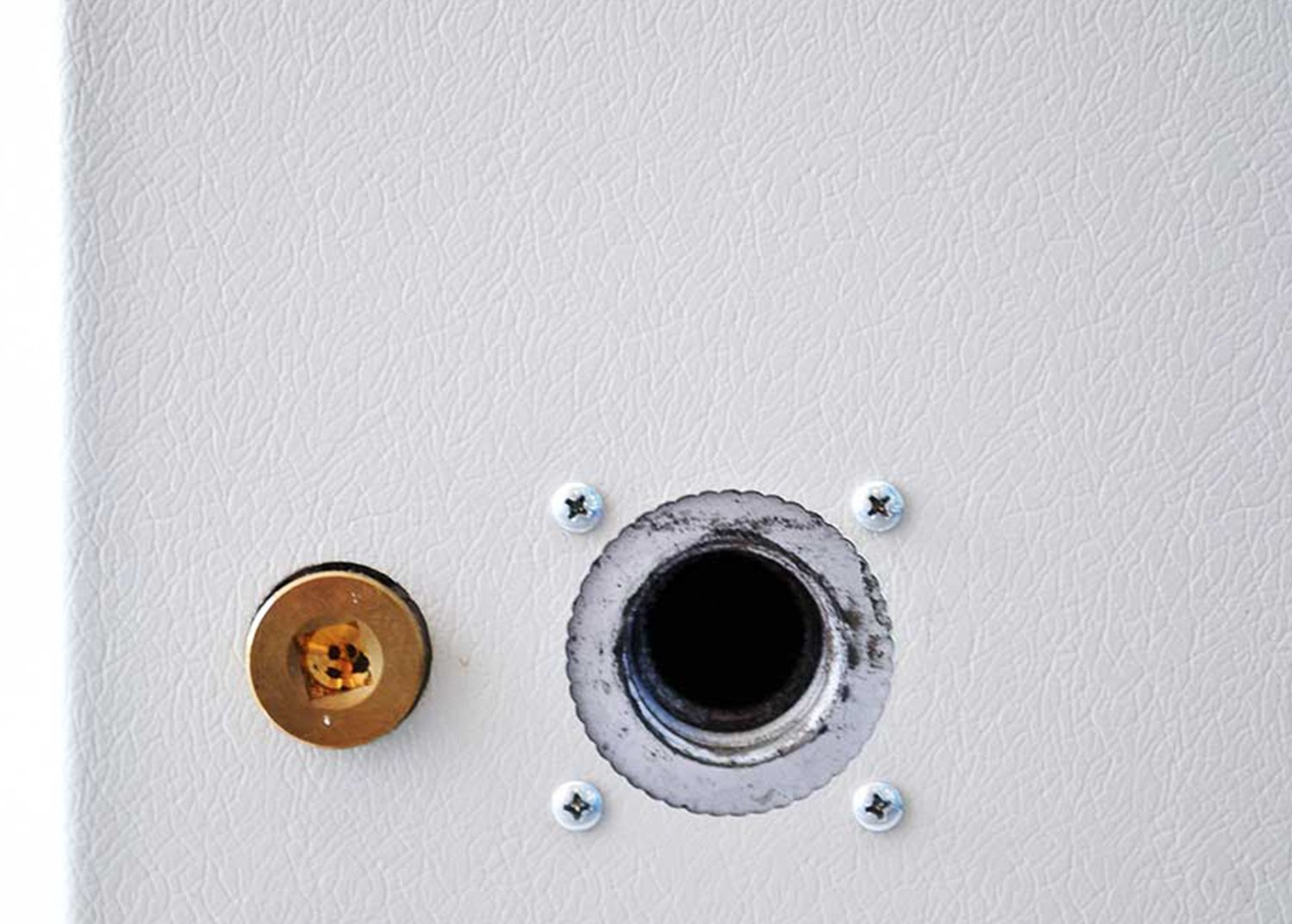

Heating connections – flow and return (dimensions depend on the model) – at the front side of the unit as standard for easy connection to the on-site heating system. Optionally, the connections can also be located at the side.



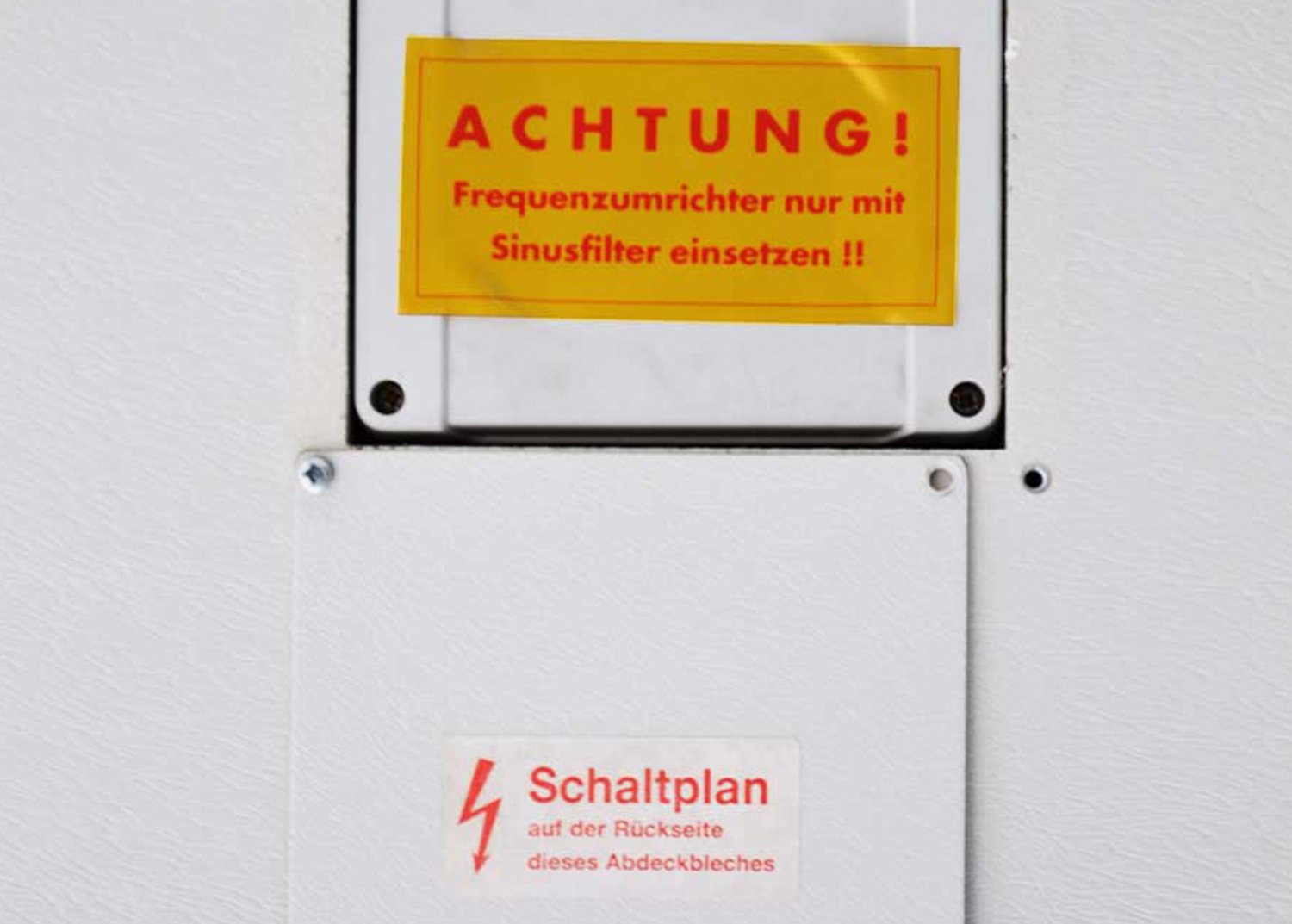

Connection box TIC 6000

Connection box TIC

Connection box (400 V – IP 54 according to VDE 0550) in the unit, easy to open from the outside.



Schnittstelle TIC 3000

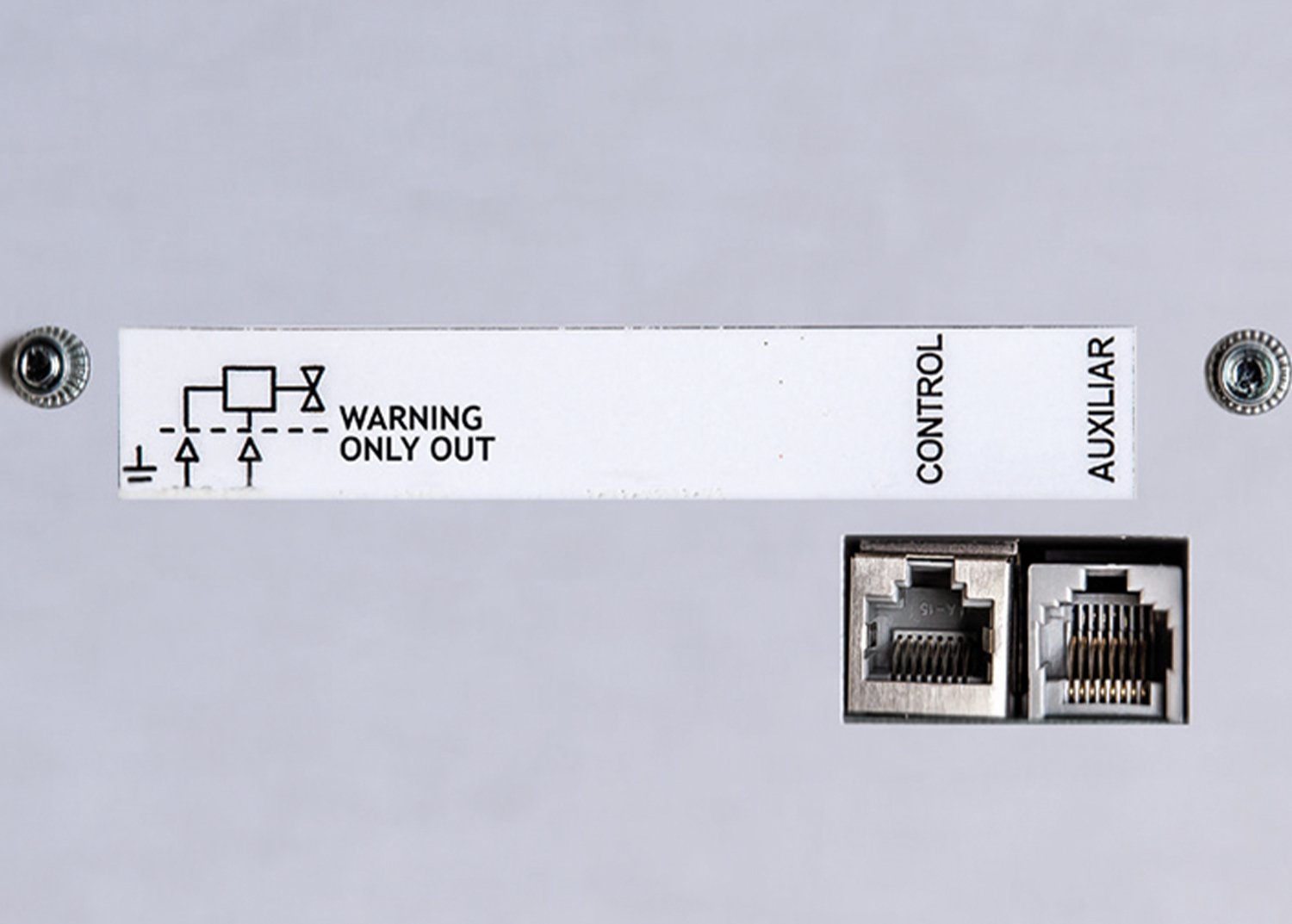

Data cable connection/interface

Simple, standard plug and play connection of the data cable and an optional magnetic valve on top side of the unit

Control:
Input for the data cable to the control unit.

Auxiliary:
Output for parallel operation with other units.

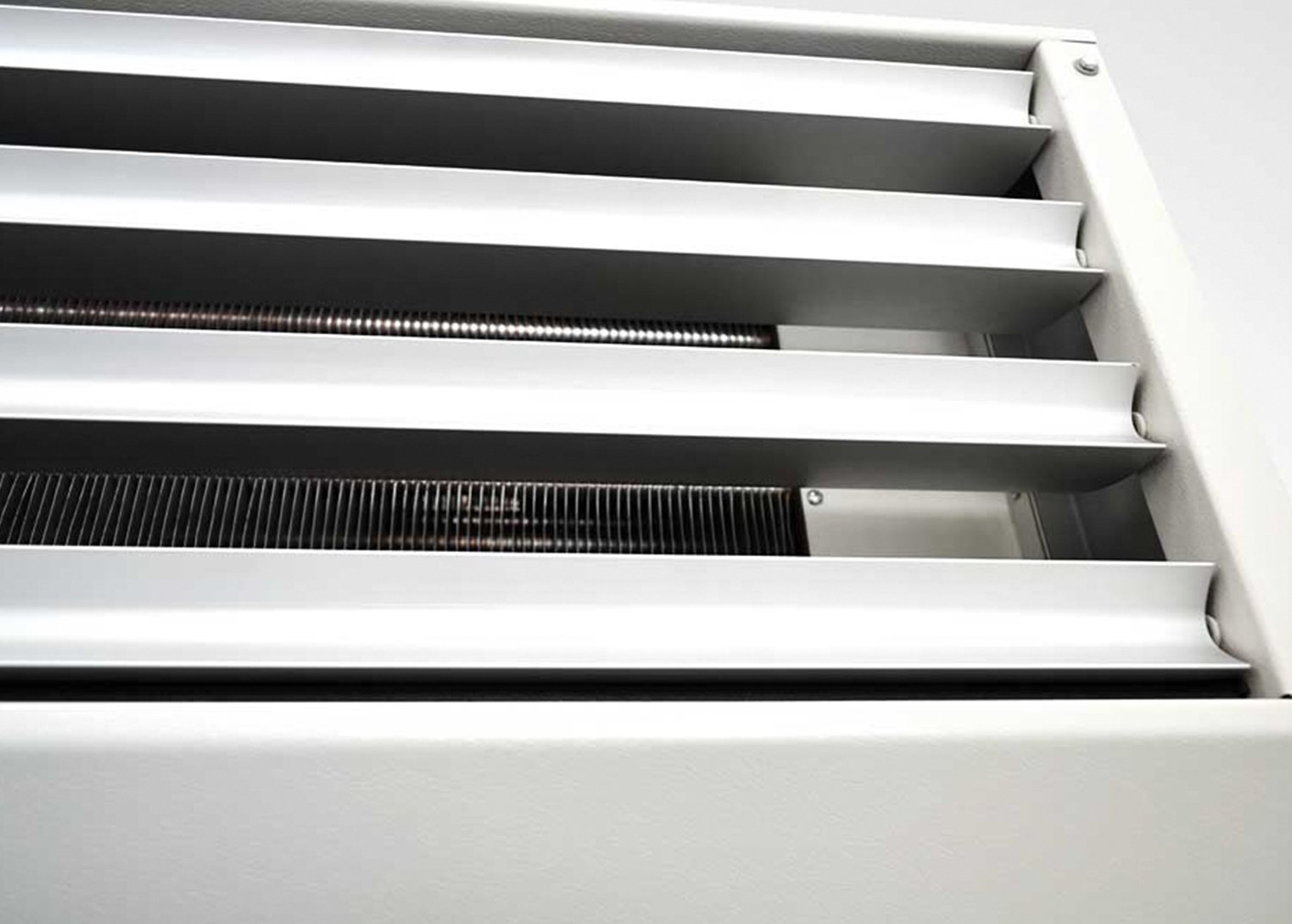

Coanvara discharge nozzle TIC 6000 / TIS-S 6000 optional

Coanvara discharge nozzle TIC 7000 / TIC 6000 / TIC-S 6000 optional

Multi-nozzle system with optimised, drop-shaped profiles, steplessly adjustable in both directions (parallel), up to 40°.







Multi-fin discharge system TIC 3000

Multi-fin discharge system TIC 3000

Completely infinitely adjustable in both directions. For a linear, smoothly directed airflow.



TIC 7000
TIC / TC-S 6000
TIC 3000

ACCESSORIES OPTIONAL



Deckenbefestigungsset

Thermostatic straight-way valve

(Setting range + 20 °C to + 35 °C) limits the discharge temperature (constant supply air temperature limitation). Also available as a 3-way valve.



Türkontaktschalter

Door contact solenoid switch

Scolded the air curtain in the automatic modus in the preselected step.



Frostschutzthermostat

Thermo-electric shut-off valve

230 V / 50 Hz, normally closed. On-site installation in the heating flow. Actuated by the summer/ winter circuit. Summer function – closed. Winter function – opened.

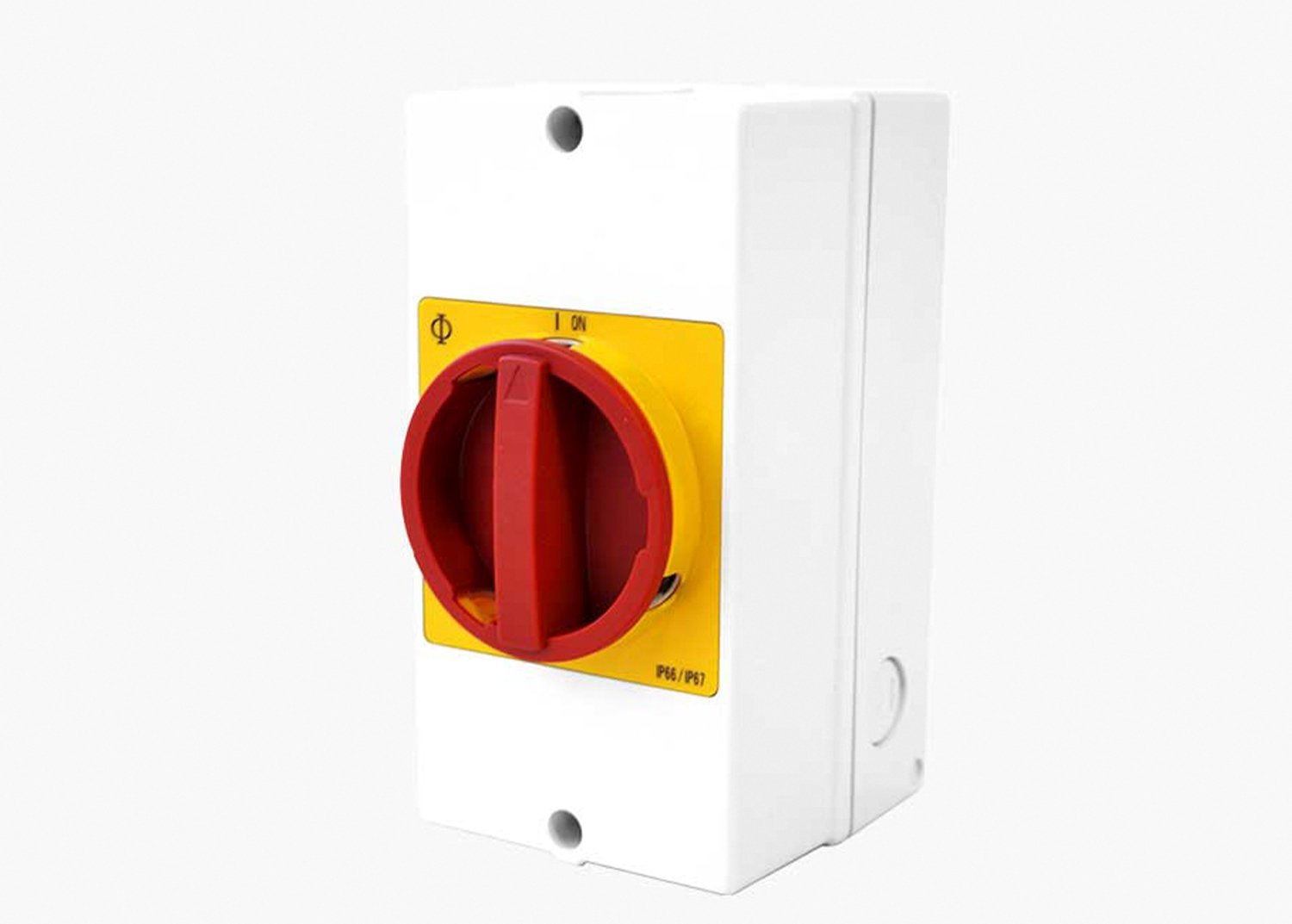

Rep-Schalter

Ceiling attachment set

For problem-free, vibration free ceiling attachment, consisting of M8 or M10 threaded rods, up to 1000 mm length, vibration dampers, turnbuckles and counter nuts.



Bedienteil GTC 2 EC

Control unit GTC 2 EC

Possibility of combination of various automatic operations. A constant discharge temperature can be set via an optional electronic control valve, and a week timer is incorporated as standard, enabling up to 12 different switching times to be programmed per week.



Frostschutzthermostat

Room temperature sensor

Room temperature sensor - RT-FD (only in combination with GTC and GTC E)



Magnetventil

Frost protection thermostat

For monitoring LPHW heat exchangers exposed to the risk of frost. As soon as the temperature falls below +7 °C, the fans are switched off and an optional solenoid valve is opened.









Raumthermostat

Electronic control valve

Electronic valve with 0-10V impulse and blow-out temperature sensor completely installed and wired. In combination with the GTC 2 control, a preselected blow-out temperature is kept constant.



TIC 7000 TIC / TC-S 6000 TIC 3000

Installation variants



Basic illustration of the air curtain on the stream axis:



Side section

Side section

Air curtain mixing temperature in the entry area of a suspended industrial air curtain, using a TIC 6001.8 at rated operation as an example. Temperature: + 5 °C outside temperature and + 30 °C discharge temperature



Vertical section

Vertical section

Air curtain mixing temperature in the entry area of a floor mounted industrial air curtain, using a TIC 6001.8 at rated operation as an example. Temperature: + 5 °C outside temperature and + 30 °C discharge temperature. The output parameters of our door air curtain units are calculated so that there is still a residual speed of approximately 1.5 m/s - 2 m/s or more after the desired stream length, as well as a room temperature of about 18°C. This is the only way to ensure sufficient function.



Installation options


Installation options

Installation variants



TIC 7000


Suspended

PDF

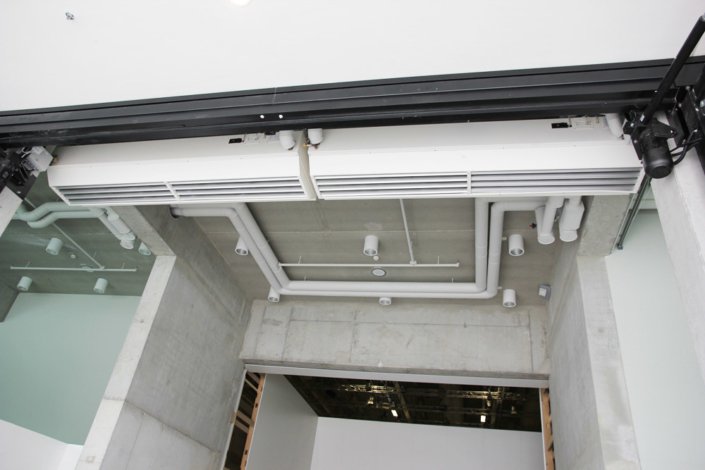

Connection-ready free-hanging door air curtain unit for visible installation directly above the door.
Ambient air intake is from above, from the ceiling area.


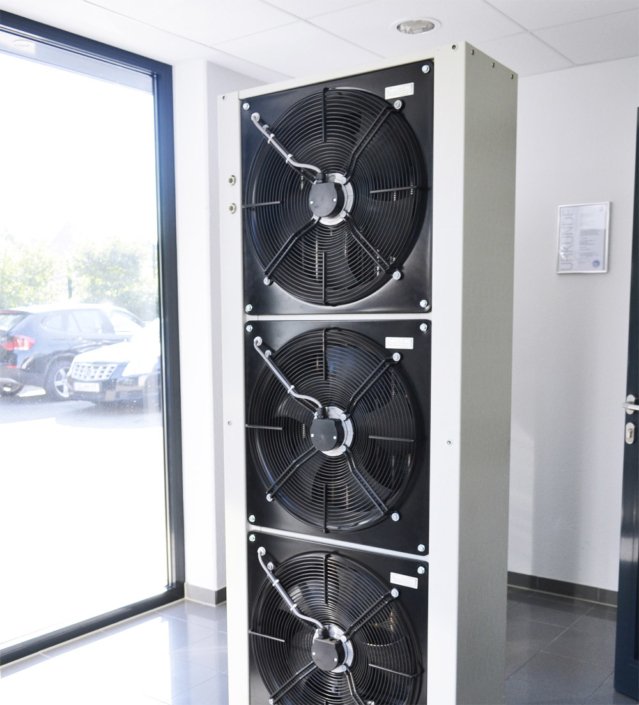

Floor mounted

PDF

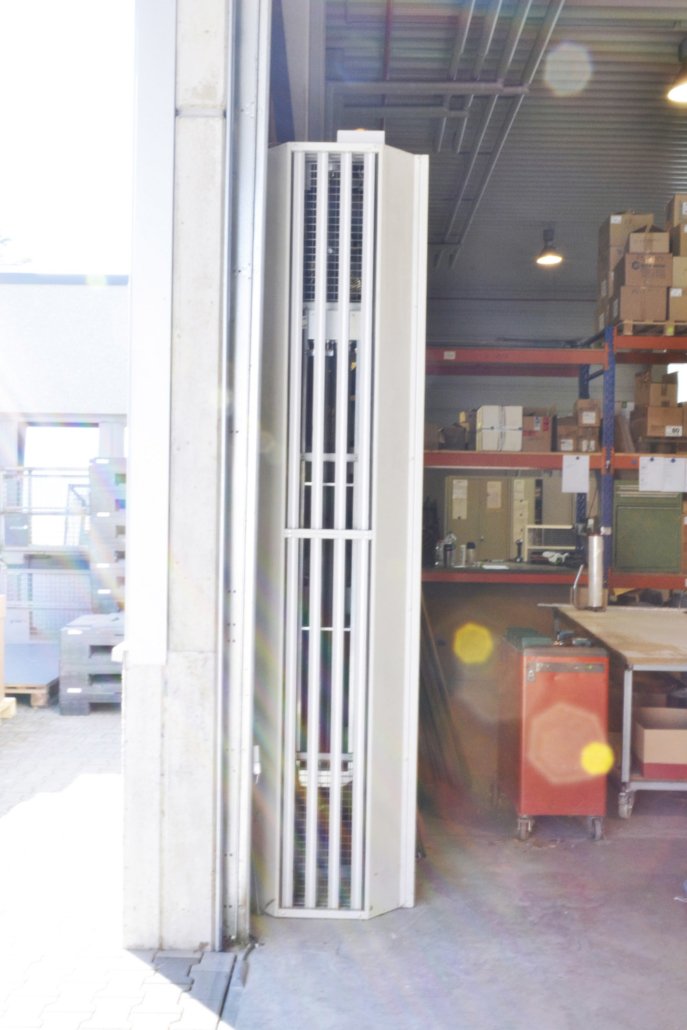

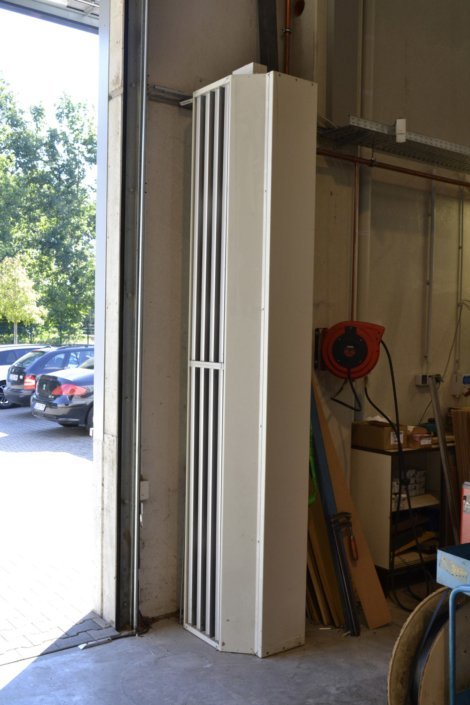

Connection-ready floor mounted door air curtain unit for visible installation directly next to the door.
Ambient air intake is from the side, on the room side.



TIC / Tic-S 6000


Suspended

PDF

Connection-ready free-hanging door air curtain unit for visible installation directly above the door.
Ambient air intake is from above, from the ceiling area


Floor mounted

PDF

Connection-ready floor mounted door air curtain unit for visible installation directly next to the door.
Ambient air intake is from the side, on the room side.



TIC 3000


Suspended

PDF

Connection-ready free-hanging door air curtain unit for visible installation directly above the door.
Ambient air intake is from above, from the ceiling area.


Floor mounted

PDF

Connection-ready floor mounted door air curtain unit for visible installation directly next to the door.
Ambient air intake is from the side, on the room side.
